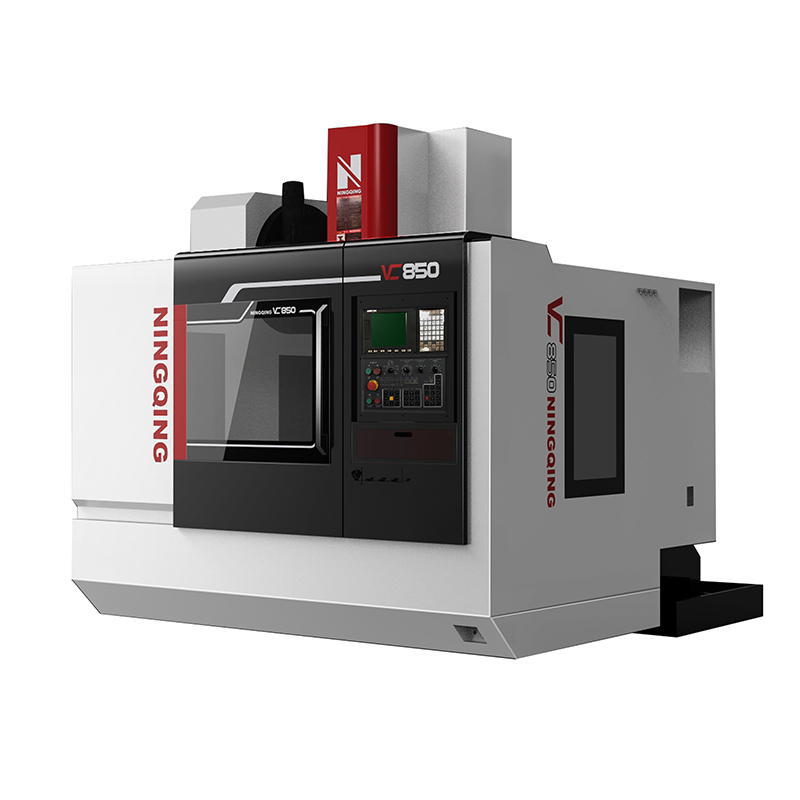

CNC Vertical Milling Machining Center 855,1160 And Above Series

CNC Vertical Milling Machining Center 855,1160 And Above Series

It is a high-speed CNC vertical milling machining center, which is applicable to industries such as electronics, medical care and new energy vehicles.

Quantity:
Availability:





Inquire Add to Basket

Explore Our Equipment

PRODUCT DESCRIPTION

855,1160 and above series

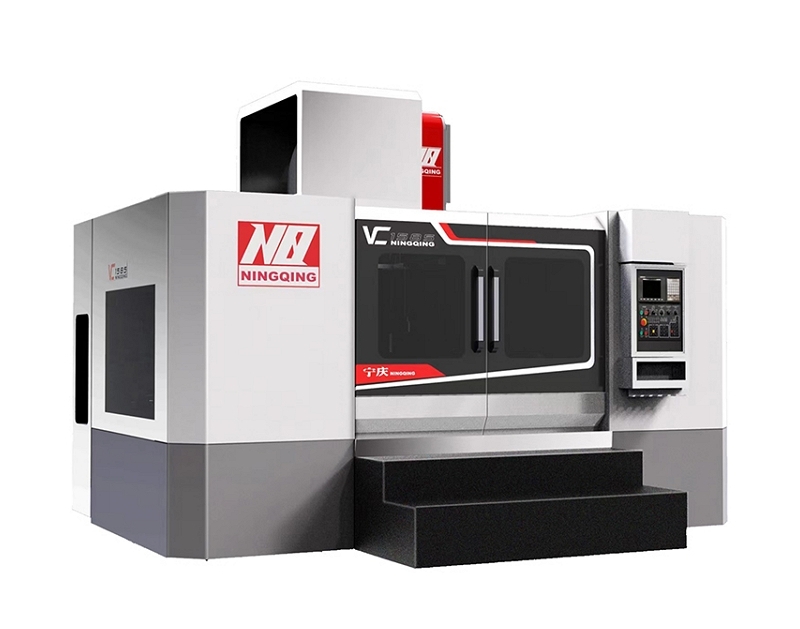

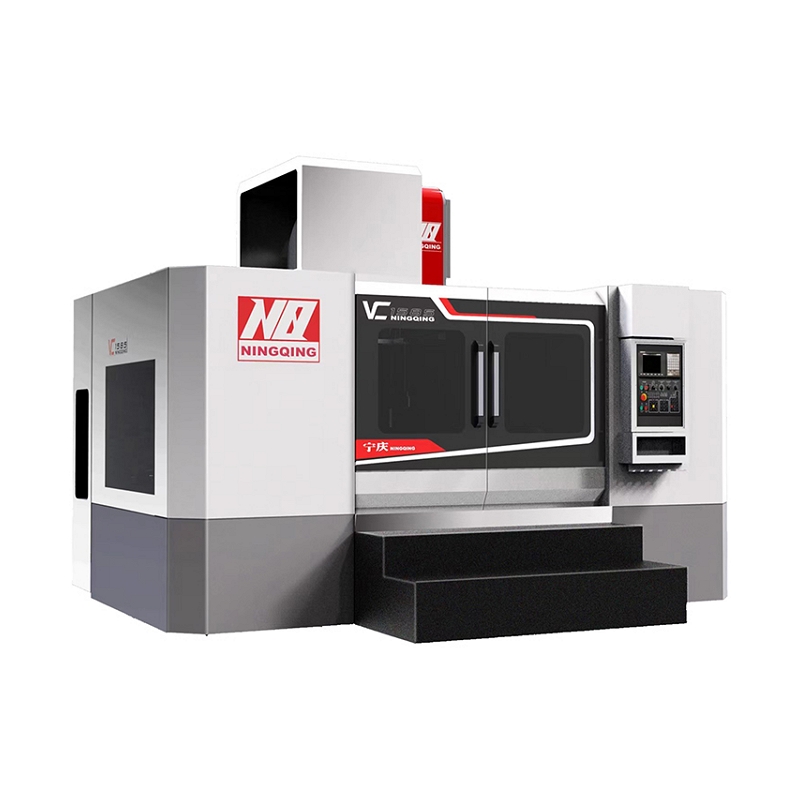

CNC Vertical Milling Machining Center Series3

Adopting large-size roller guideway to ensure the rigidity of large cutting volume machining, fast speed, high precision, strong rigidity, especially suitable for large volume products and high precision mold machining.

Wide bed provides 4 line rails for Y direction to ensure the stability and rigidity of large stroke operation.

Z-axis adopts pneumatic-hydraulic balancing, with high-speed dynamic response, to meet the high-speed machining.

All models adopt high speed and high precision heavy-duty line rail, Z-axis adopts large-size roller type to ensure large cutting volume cutting, fast speed, high precision, high rigidity, especially suitable for large-volume products and high-precision mold machining.

All three-way screws are assembled with 3+2 bearing combinations, which improve the high speed and acceleration of the machine tool with the pre-pulling installation process of the screws.

PRODUCT PARAMETERS

Parameters	Unit	VC855	VC1160	VC1270	VC1585
Workbench area	mm	500x1000	600x1100	710x1300	900x1600
Table loading	Kg	600	800	900	1500
T- slot	mm	5x18	5x18	5x18	7x18
X/Y/Z travel	mm	860x550x560	1080x630x600	1200x700x600	1500x850x700
Spindle center to guide way	mm	580	650	810	1000
Spindle nose to table	mm	110-670	150-750	150-750	200-900
Spindle taper	/	BT40-150/BBT40	BT40-150	BT40-150/BT50-155	BT50-155
Spindle speed	rpm	10000/belt;12000/15000/direct; 18000/24000(HSKA63)electric spindle		8000/belt;10000/direct; 18000/24000(HSKA63)electric spindle
Spindle motor	Kw	Siemens:9/13.5 Fanuc:7.5/11	Siemens:9/13.5 Fanuc:11/15	Siemens:12/18 115/172Nm Fanuc15/18.5	Siemens:12/18 115/172Nm Fanuc15/18.5
Feeding speed	m/min	48	48	32	20
Rapidt speed	m/min	48	48	32	20
Tool magazine capacity	/	24
Tool change time	s	1.8
Positioning accuracy	mm	0.01
Repeatability accuracy	mm	0.005
Machine weight	kg	5500	6500	8800	12000
Dimension	mm	2600x2200x2600	2950x2550x2600	3450x2800x2700	4300x3200x3000
General power capacity	kw	22	25	30	36
Control system	/	Siemens,Fanuc.
