High Speed Ganty Milling Manchining Center For Extra Long Job in Areospace

High Speed Ganty Milling Manchining Center For Extra Long Job in Areospace

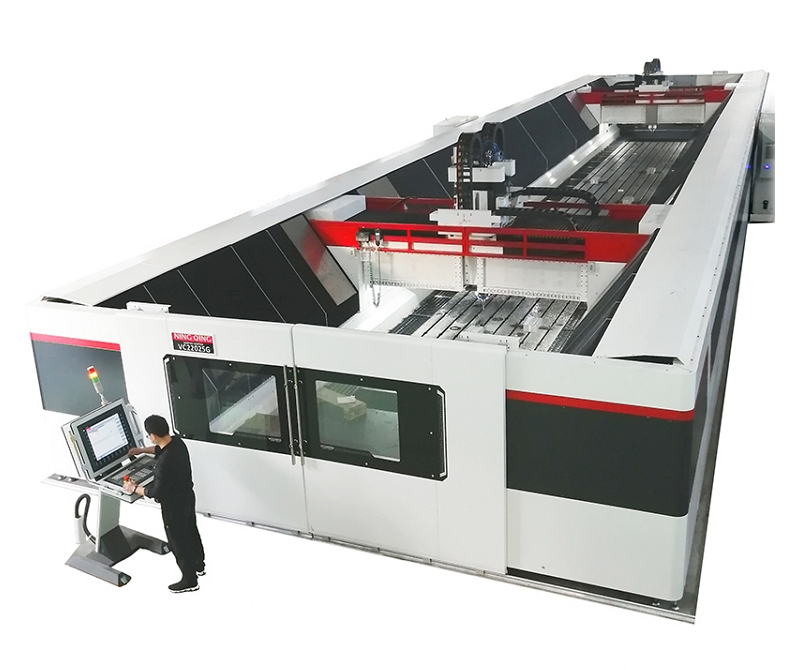

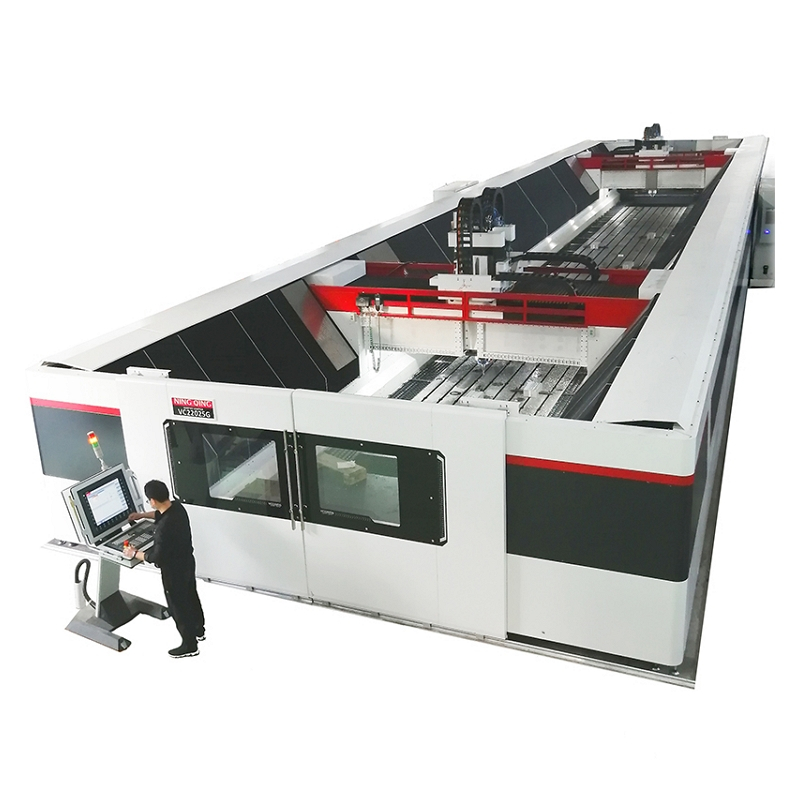

It is a high-speed gantry with a moving crossbeam in a box-in-box design, which is applicable to the processing of super-long parts. It is used in industries such as aerospace, wind power, etc., and can meet the requirements of high-speed machining. Its acceleration can reach 0.4G, and the materials for processing include stainless steel, aluminum alloy, titanium alloy and so on.

Quantity:
Availability:





Inquire Add to Basket

Explore Our Equipment

PRODUCT DESCRIPTION

BMS separate type: 25, 30 and above series

High-speed crossbeam mobile gantry

High stability: box-in-box symmetrical beam structure design for high speed and stability.

High speed: Maximum acceleration 0.4G, rapid traverse speed 40m/min, cutting speed 20m/min.

High precision: adopt synchronous transmission technology, front and rear servo motor + planetary reducer, X and Y through the rack and pinion + dual motor backlash to ensure the accuracy of the machining profile, full closed-loop control of the absolute value of the grating scale

High rigidity and high strength: fixed table, Z-axis more than four large-size ball-type line rail, large cutting volume, fast speed, high precision, ultra-rigid, suitable for large-volume products and high-precision mold processing.

Optimization of mechanical structure by finite element analysis to improve rigidity, strength, balance and stability.

Modular design of the guide rail seat proprietary technology of splicing process, which can realize the infinite possibilities of multi-section splicing in length.

PRODUCT PARAMETERS

Parameters	Unit	BMS 25*	BMS 30*	BMS 36*	BMS 40*	BMS 50*
Worktable length	m	14,16,18,20,22 (table length can be increased by 2 meters)
Worktable width	mm	2100	2600	3100	3600	4600
X travel	mm	4000,6000,10000,14200,16200,18200,20200,22200(X-directional travel increases by every 2meters )
Y travel	mm	2500	3000	3000	3600	4000
Max workpiece width	mm	3160	3600	4100	4600	5600
Rapid / feeding speed	m/min	40/0-20
Positioning/repeat accuracy	mm	0.01/0.005
Control system	/	Siemens 828D、Siemens ONE

Parameters	Unit	BMS	BMS-H	BMS-L
Z travel	mm	600	1200	1200
Dist.from spindle nose totable	mm	100-700(customizable)	360-1550(customizable)	360-1550(customizable)
Electric spindle	/	B1 head,C2 head / optional	B1 head,C2 head / optional	B1 head,C2 head / optional
Max loading height	mm	650((customizable)	1550 ((customizable)	1550 ((customizable)
