Heavy Cutting Movable Column CNC Gantry Manchining Center

Heavy Cutting Movable Column CNC Gantry Manchining Center Wholesale

It is a heavy-cutting gantry-moving CNC machining center. It is specifically designed for extra-large, extra-heavy and wide parts. With an separate structure, it is applicable to industries like aerospace and wind power.

Quantity:
Availability:





Inquire Add to Basket

Explore Our Equipment

PRODUCT DESCRIPTION

GMS ultra wide models of 40, 50, 60 and above series

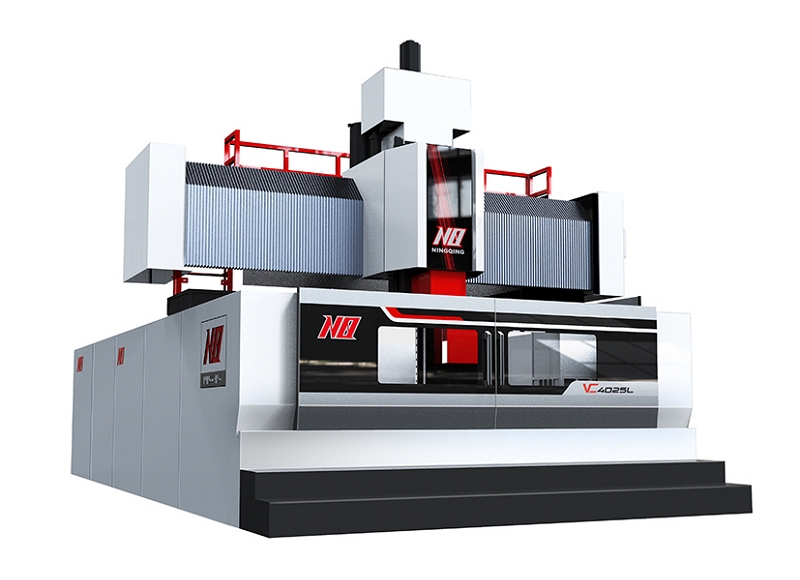

Heavy Cutting Movable Column CNC Gantry Manchining Center3

Heavy cutting for fast roughing of hard materials.

Large table capacity for machining large parts up to 200T or more.

Larger processing space, smaller footprint, ultra-long and ultra-wide processing, can be equipped with a variety of side milling head.

The bed is designed with integral splicing end face, which can be infinitely spliced and lengthened according to customers' requirements.

The guideway seat and worktable are separated, and the height of closure can be adjusted freely.

Synchronized dual-drive four-motor homogeneous differential clearance.

The three-axis composite guideway effectively overcomes the common weakness of the long cantilever at the cutting point of gantry machine tools.

Y-axis effectively prevents the tilting force of the gantry during rapid movement and cutting.

The Z-axis greatly improves the guiding accuracy while retaining the rigidity of the square ram, making it more suitable for machining large cutting volumes and difficult-to-machine materials.

PRODUCT PARAMETERS

Parameters	Unit	GMS60/80-40	GMS60/80-50	GMS80/100-60	GMSXXX50
Worktable area	mm	6000/8000x3100	6000/8000x4100	8000/10000x5100	XXXx4100
Max loading on worktable	t	48/75	68/88	100/125	/
Y1/Y2 travel	mm	4000/4500	5000/5500	6000/6500	5000/5500
X/Z travel	mm	6200/8200x1200	6200/8200x1200	8200/10200x1200	/
Spindle nose to table surface	mm	360-1550，360-1850 optional
Distance between column	mm	4000	5000	6000	5000
Rapid/feeding speed	m/min	15/0-10
Positioning/repeat accuracy	mm	0.01/0.005
Machine weight	t	58/75	68/80	85/100	/
Dimension (without electrical cabinet)	mm	11650/13650x7360 x5200	11650/13650x8360 x5200	13650/15650x9360 x5200	/
Weight of machine	/	Siemens 828D、Fanuc 0i MF plus、optional:Siemens ONE
