High Speed Series For Mould Manchining MOLD Series & MOLD 5A Series

High Speed Series For Mould Manchining MOLD Series & MOLD 5A Series

It is a high-speed CNC gantry machining center designed for the mold industry.

Quantity:
Availability:





Inquire Add to Basket

Explore Our Equipment

PRODUCT DESCRIPTION

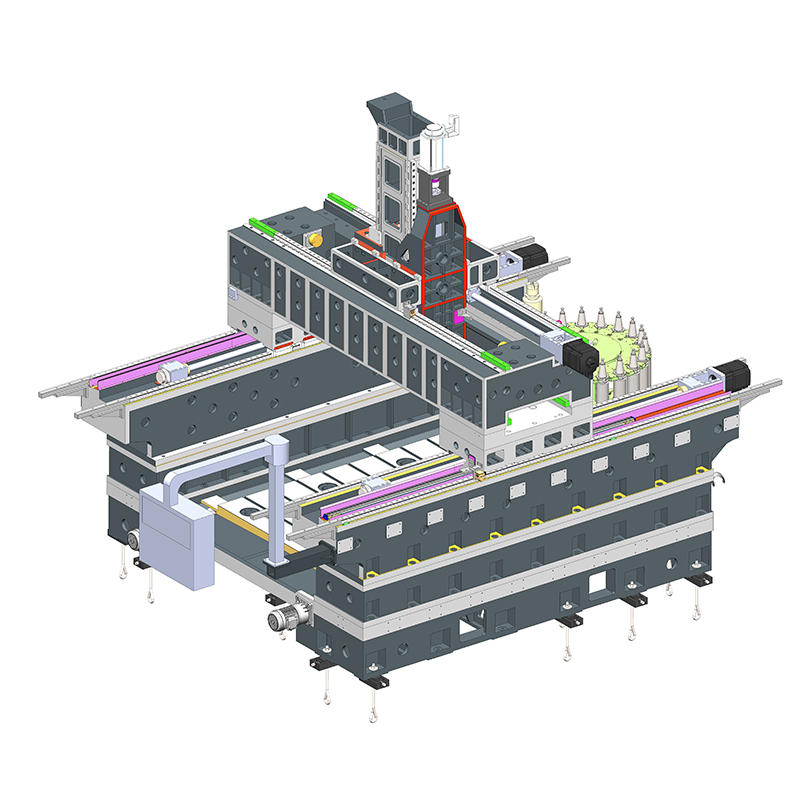

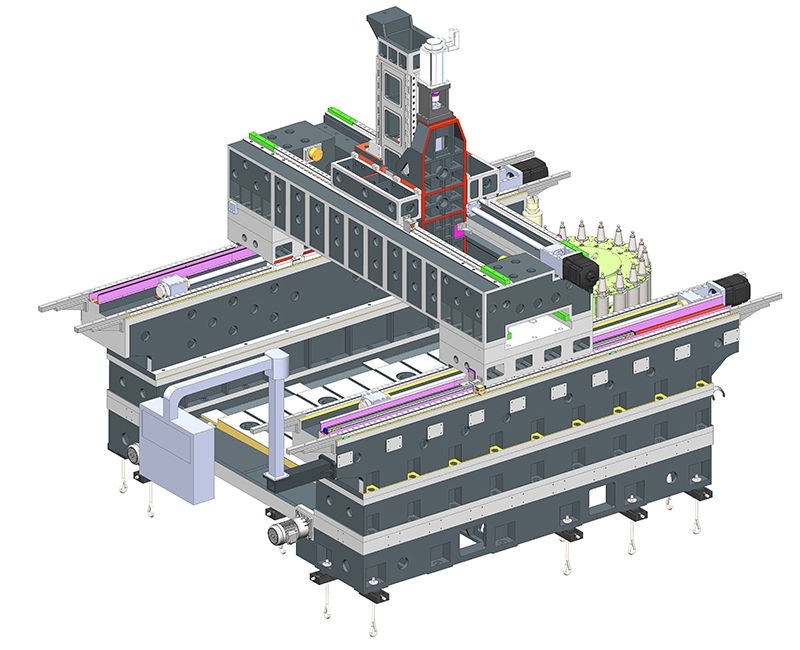

MOLD Series

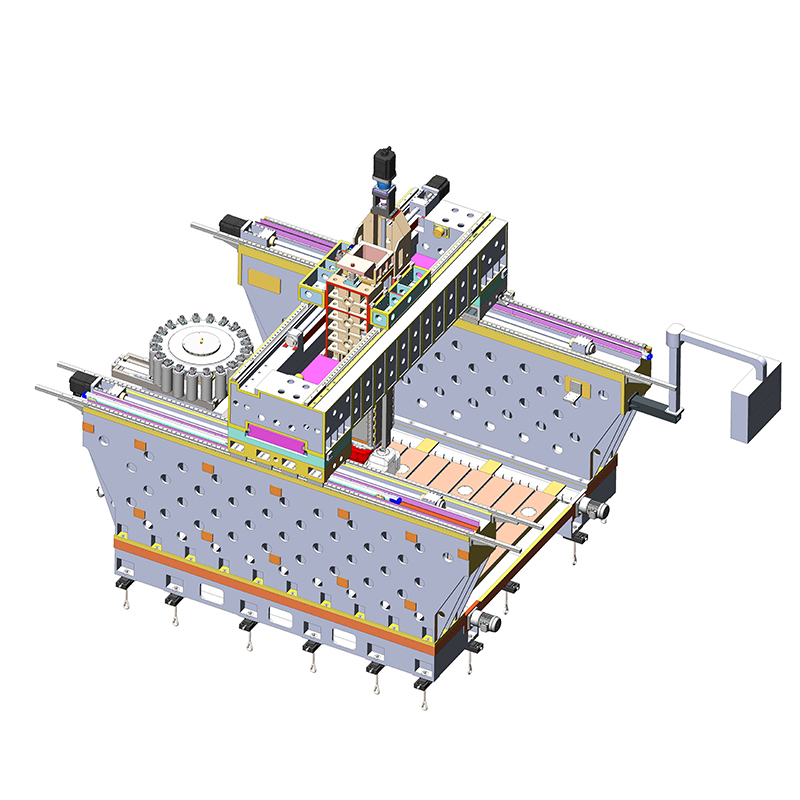

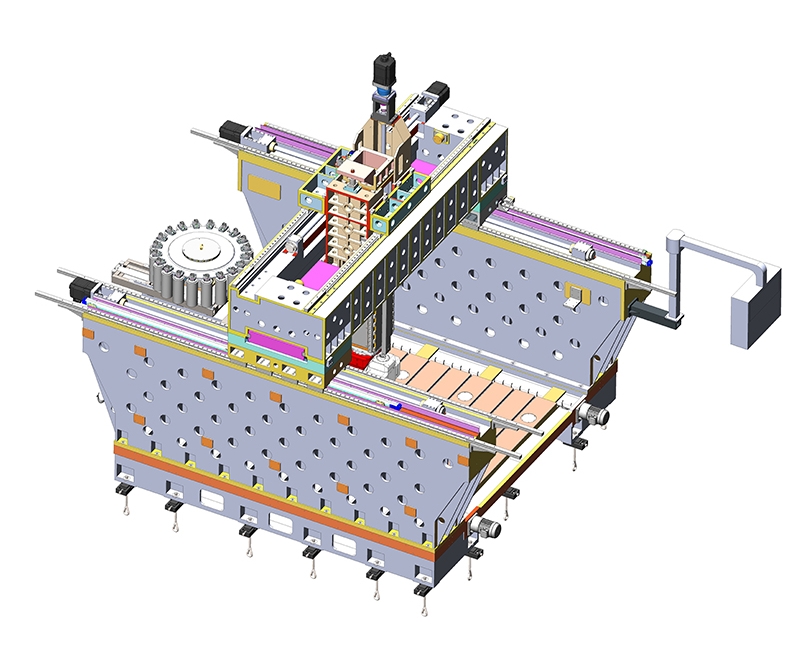

MOLD 5A Series

The crossbeam adopts a box-in-box structure, and the four linear rails are distributed in a T-shaped rail structure.

This can not only meet the needs of rapid and precise movement but also provide sufficient rigidity and greatly reduce the overturning caused by the influence of inertia when changing directions quickly.

The linear rails are of the heavy-duty roller type with a specification of 4 pieces of 55MM.

The crossbeam has a box-shaped structure, and there are reinforcing ribs arranged inside it, which increases the torsional stiffness of the crossbeam.

The crossbeam is made by resin sand casting and has undergone two aging treatments to eliminate internal stresses.

PRODUCT PARAMETERS

MOLD Series

Parameters	Unit	MOLD1813	MOLD2515	MOLD3019
Worktable size	mm	1900x1300	2500x1600	3000x2000
Worktable load capacity	t	9	15	30
X/Y/Z travel	mm	2000x1300x550	2500x1500x800	3200x1900x800
Dist.from spindle nose to table	mm	230-780	200-1000
Max workpiece HxW	mm	660x1550	950x1900	950x2300
Rapidt speed	m/min	20
Feeding speed	m/min	0-15
Positioning/repeat accuracy	mm	0.01/0.005
Weight of machine	t	17	30	32
Size (without electrical cabinet)	mm	4800x3400x2900	6000x4300x4200	6800x4820x3700
Control system	/	Siemens 828D、Fanuc MF plus

MOLD 5A Series

Parameters	Unit	MOLD5A3020	MOLD5A4025
Worktable size	mm	3200x2000	4000x2500
Worktable load capacity	t	20	30
X/Y/Z travel	mm	3200x2000x1000	4200x2500x1200
Dist.from spindle nose to table	mm	200-1200(customizable)	150-1360(customizable)
Max workpiece height	mm	1200 (customizable)
Max workpiece width	mm	2400	3300
Rapidt speed	m/min	0-20
Feeding speed	m/min	20
Positional accuracy	mm	0.01
Repeat accuracy	mm	0.005
Weight of machine	t	40	60
Size (without electrical cabinet)	mm	7400x4300x5500	9080x6800x5500
Control system	/	Siemens 828D、Fanuc MF plus
