Moving Crossbeam CNC Gantry Milling Manchining Center (CMI)

Moving Crossbeam CNC Gantry Milling Manchining Center (BMI)

It is applicable to the aerospace, new energy vehicle, wind power, photovoltaic and precision mold industries, and can meet the requirements of high-speed machining. The acceleration can reach 0.4G. The materials for machining include aluminum alloys, titanium alloys and so on.

Model:
16, 20 series

Quantity:
Availability:





Inquire Add to Basket

Explore Our Equipment

PRODUCT DESCRIPTION

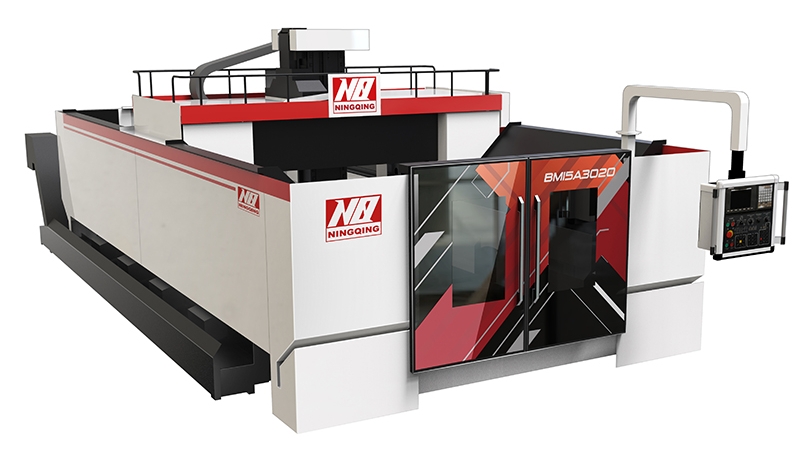

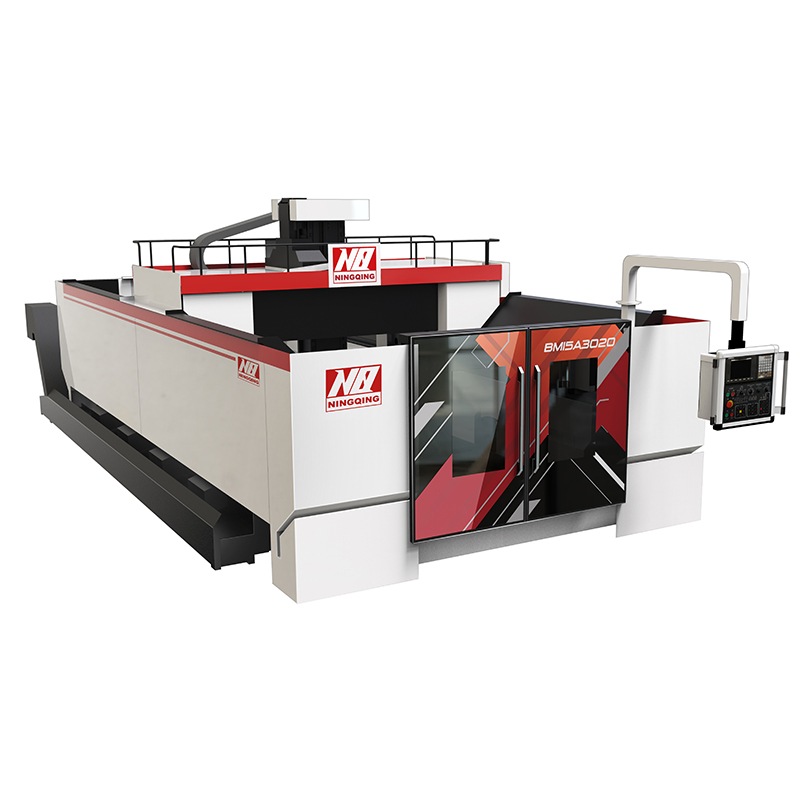

BMI One-body type: 16, 20 series

High-speed crossbeam mobile gantry

High stability: box-in-box symmetrical beam structure design for high speed and stability.

High speed: Maximum acceleration 0.4G, rapid traverse speed 40m/min, cutting speed 20m/min.

High precision: adopt synchronous transmission technology, front and rear servo motor + planetary reducer, X and Y through the rack and pinion + dual motor backlash to ensure the accuracy of the machining profile, full closed-loop control of the absolute value of the grating scale

High rigidity and high strength: fixed table, Z-axis more than four large-size ball-type line rail, large cutting volume, fast speed, high precision, ultra-rigid, suitable for large-volume products and high-precision mold processing.

Optimization of mechanical structure by finite element analysis to improve rigidity, strength, balance and stability.

Modular design of the guide rail seat proprietary technology of splicing process, which can realize the infinite possibilities of multi-section splicing in length.

PRODUCT PARAMETERS

Parameters	Unit	BMI2516	BMI3016	BMI3020	BMI4016/6016	BMIXXX16
Worktable size	mm	2500x1600	3000x1600	3000x2000	4000/6000x1600	12,14,16,18,20 (table length increased by 2 m) x1600
Worktable load capacity	t	15	20	30	25/36	/
X/Y/Z travel	mm	2500x1600x600	3200x1600x600	3200x2000x600	4200/6200x1600 x600	12200/14200/16200/18200/ 20200(increased by 2 meters)x1600x600
Dist.from spindle nose to table	mm	80-680
Max workpiece HxW	mm	600x1900	600x1900	600x2300	600x1900	600x1900
Rapidt speed	m/min	20			40/20/20
Feeding speed	m/min	0-15
Positioning/repeat accuracy	mm	0.01/0.005
Weight of machine	t	27	29	32	33/42	/
Size (without electrical cabinet)	mm	6800x4300x3700	6800x4420x3700	6800x4820x3700	8200/10200x442 0x3700	/
Control system	/	Siemens 828D、Fanuc MF plus as standard，Siemens One optional
