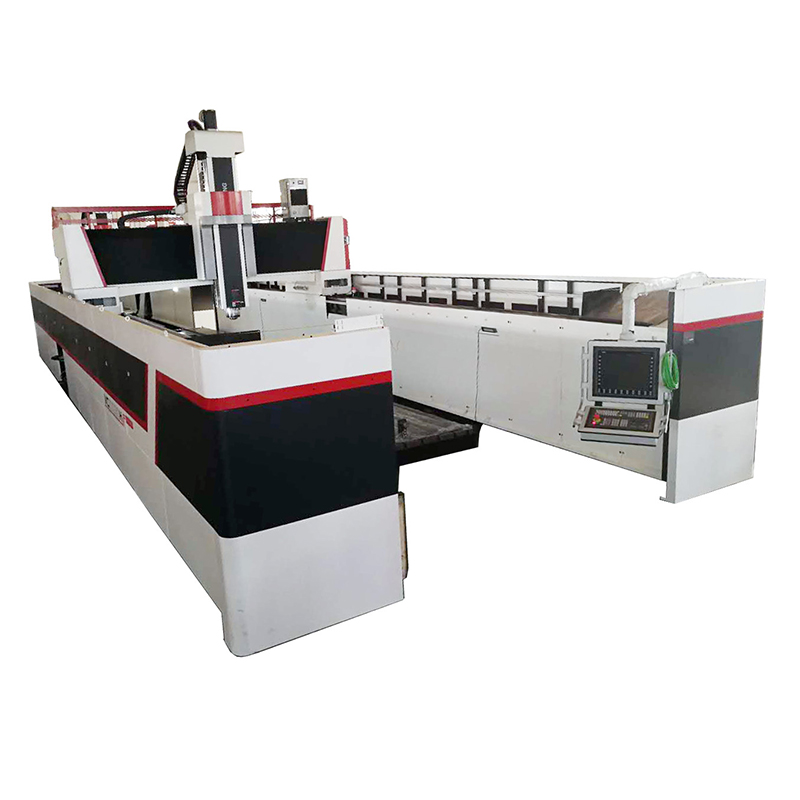

Moving Crossbeam CNC Ganty Milling Manchining Center (CMI) Manufacturer

Moving Crossbeam CNC Ganty Milling Manchining Center (CMI) Manufacturer

It is an CNC gantry milling machining center with a movable crossbeam, which is applicable to industries like aerospace, photovoltaics and precision molds.

Quantity:
Availability:





Inquire Add to Basket

Explore Our Equipment

PRODUCT DESCRIPTION

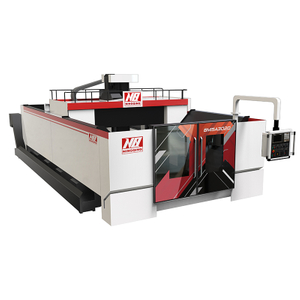

CMI one-body structure 13 series

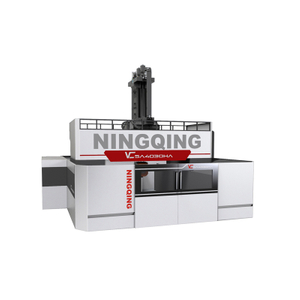

CMS Separate structure 25,30 above Series

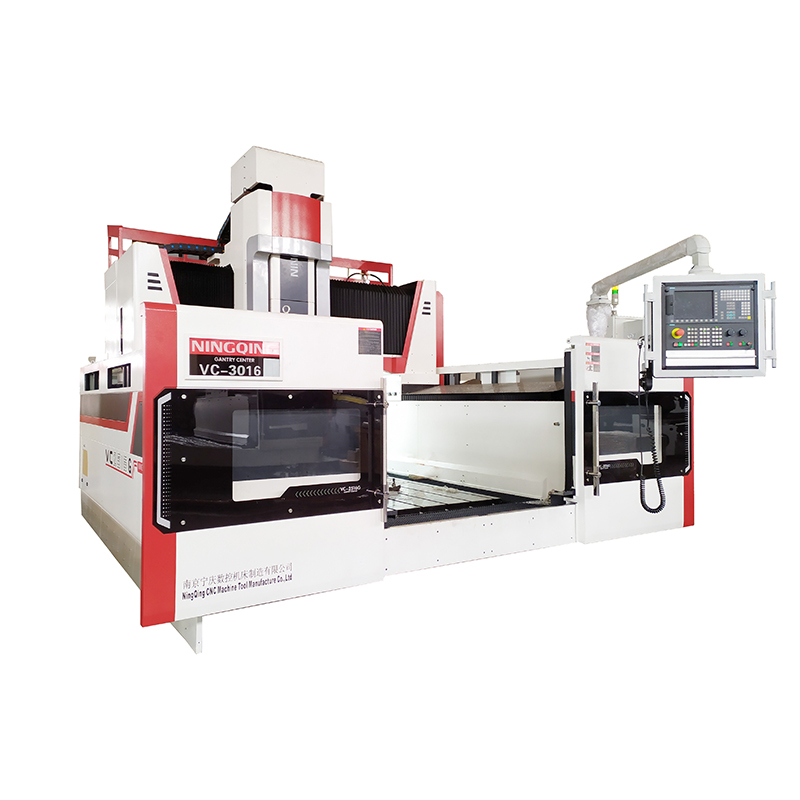

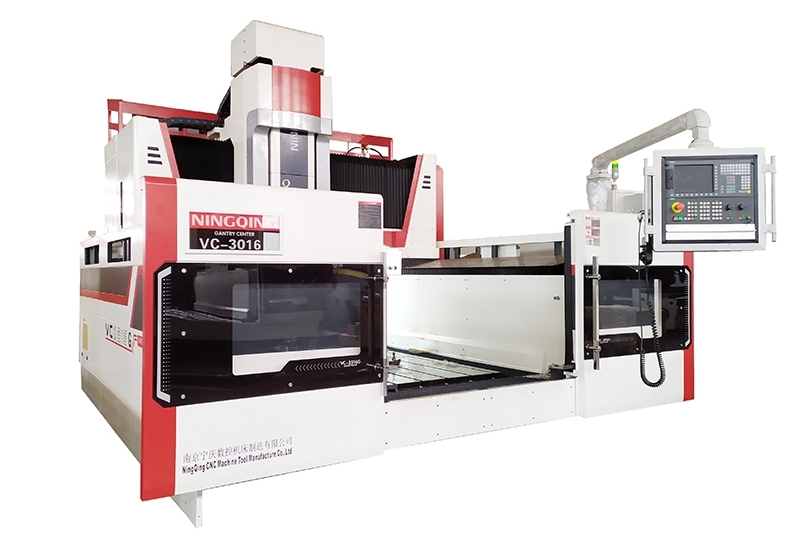

Moving Crossbeam CNC Gantry Milling Manchining Center(CMI)1

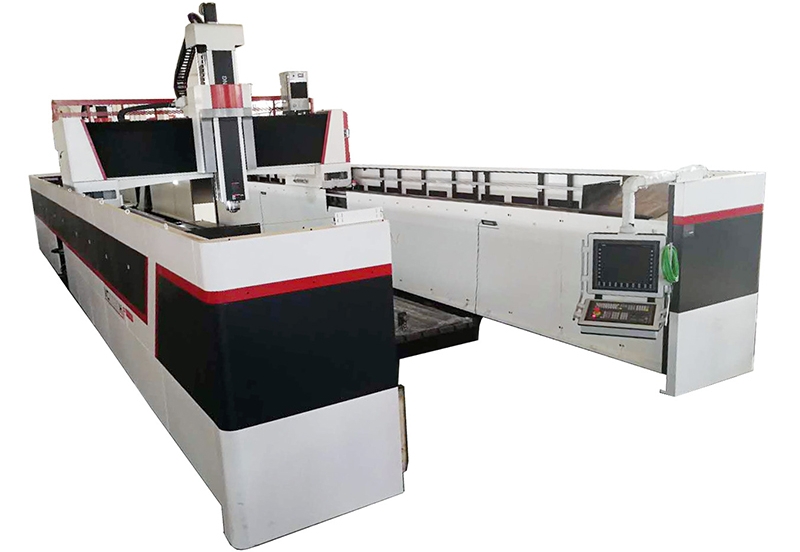

Moving Crossbeam CNC Gantry Milling Manchining Center(CMI)2 - 副本

Imported high-speed and high-precision ball screws, good precision retention and rigidity.

The crossbeam is directly connected to the screw through a high-power servo motor to ensure the precision of the machining contour without overcutting phenomenon.

The left and right guide rail seat and worktable are separated, and the height of closure can be adjusted freely.

Adopt rack and pinion drive for 8 meters and above travel, synchronized dual drive four motor isotropic differential backlash movement structure.

Small footprint, 60% of the same specifications of the table mobile gantry.

The use of self-developed composite guide technology to lengthen the cutting resistance moment and bearing area, to enhance cutting resistance.

The table bearing large, theoretically not subject to weight limitations.

PRODUCT PARAMETERS

CMI one-body structure 13 series

Parameters	Unit	CMI1813
Worktable	mm	1900x1300
Max loading on table	t	9
X/Y/Z travel	mm	2000x1300x550
Dist.from spindle nose to table surface	mm	230-780(customizable)
Dist.from spindle nose to table	mm	660 (customizable) x1550
Rapid/feeding speed	m/min	30/0-15
Positioning/repeat accuracy	mm	0.01/0.005
Weight of machine	t	15
Dimension (without electrical cabinet)	mm	4800x3400x2900
Control system	/	Slemens 828D、Fanuc MF plus, optional:Siemens ONE

CMS Separate structure 25,30 above Series

Parameters	Unit	CMS4025	CMS6025	CMS6030	CMS8030	CMSXXX36
Worktable	mm	2100x4000	2100x6000	2600x6000	2600x8000	3100xXXX
Max loading on table	t	30	40	50	65	/
X/Y/Z travel	mm	4950x2500x1200	6950x2500x1200	6950x3000x1200	8950x3000x1200	/
Dist.from spindle nose to table	mm	360-1550(customizable)
Max loading height x width	mm	1500 (customizable)x3160		1500 (customizable)x3600
Rapid/feeding speed	m/min	20/0-15
Positioning/repeat accuracy	mm	0.01/0.005
Control system	/	Siemens 828D、Fanuc MF plus,Siemens ONE
Weight of machine	t	60	75	78	102	/
Dimension (without electrical cabinet)	mm	9080x6320x5750	11080x6320x5750	12020x6820x5750	13020x6820x5750	/

SCENARIO SOLUTIONS

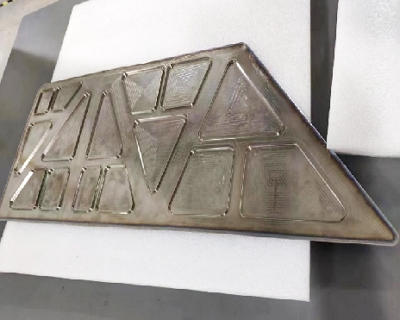

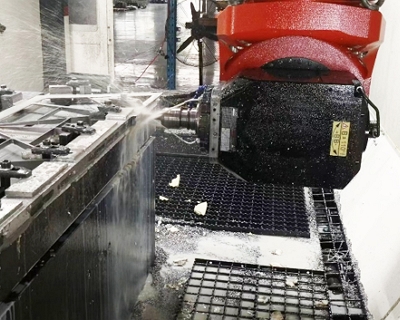

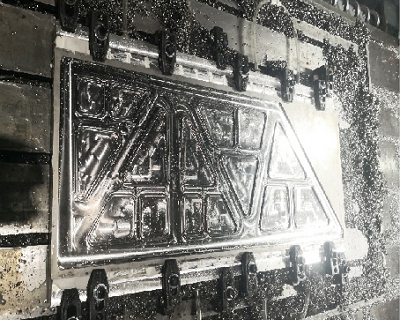

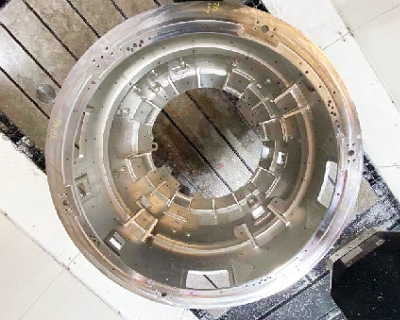

AEROSPACE

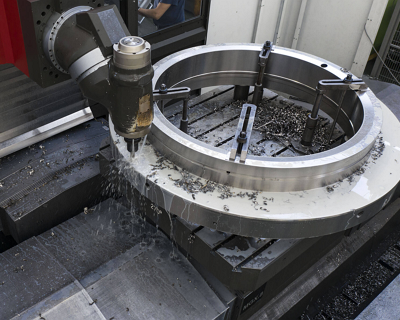

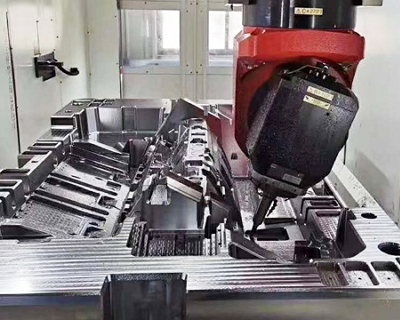

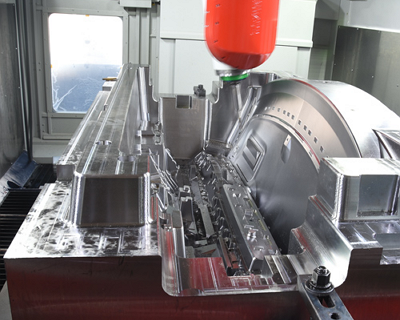

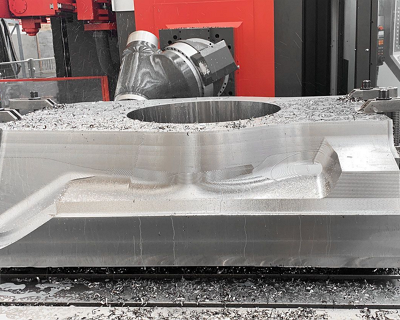

MOULD
