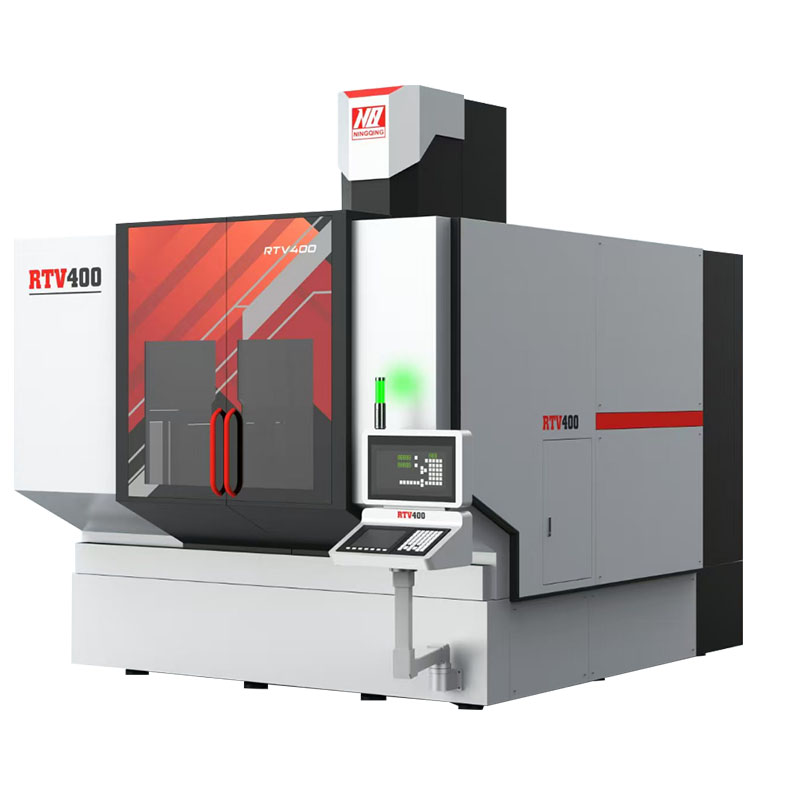

Crossbeam Moving Cradle 5-Axis Machining Center Series

Crossbeam Moving Cradle 5-Axis Machining Center Series

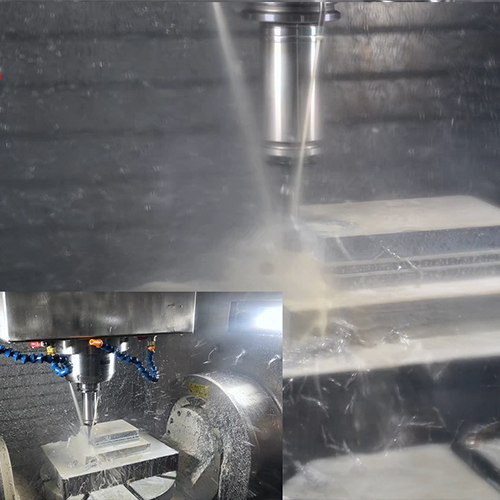

Integrated turning and milling functions, meaning that the optional turning tool holder can easily achieve light turning functionality.

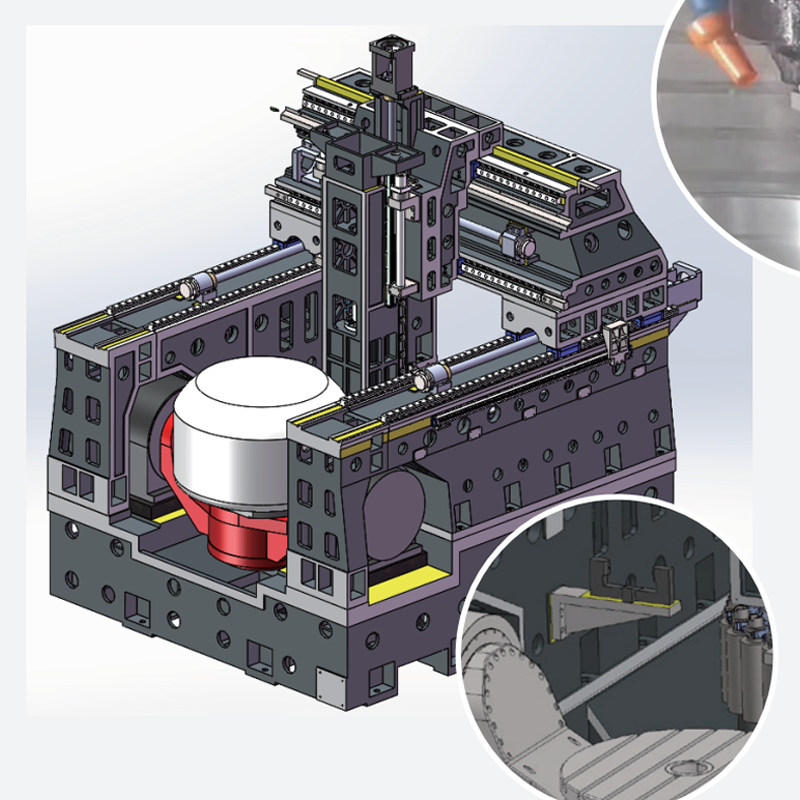

Adopts a gantry structure, with an integrated bed that has high rigidity and high dynamic performance.

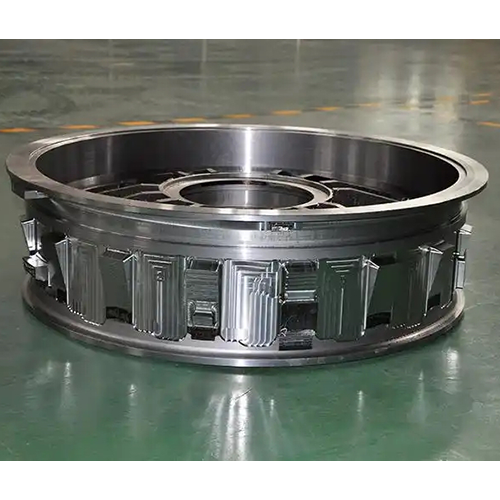

Extra-large travel, expanding the range of extreme machining.

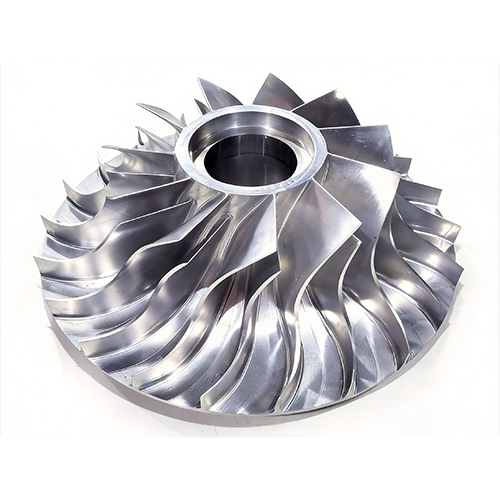

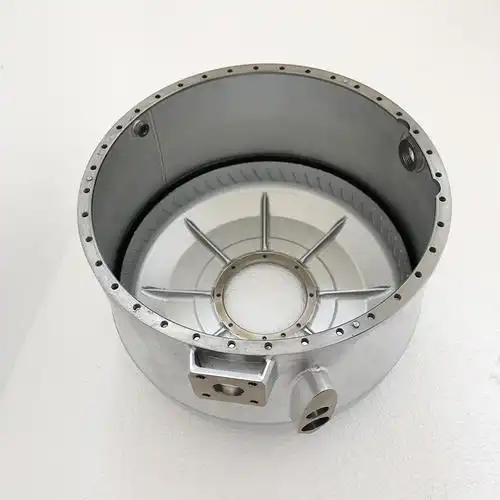

Dual-speed high-torque high-speed electric spindle, suitable for both titanium alloy and aluminum alloy machining.
The tool measuring instrument is fixed on the bed, reducing measurement errors.

Quantity:
Availability:





Inquire Add to Basket

Explore Our Equipment

PRODUCT DESCRIPTION

Crossbeam Moving Cradle 5-Axis Machining Center Series	Gantry type Vertical/Horizontal 5 Axis Series RHH5A

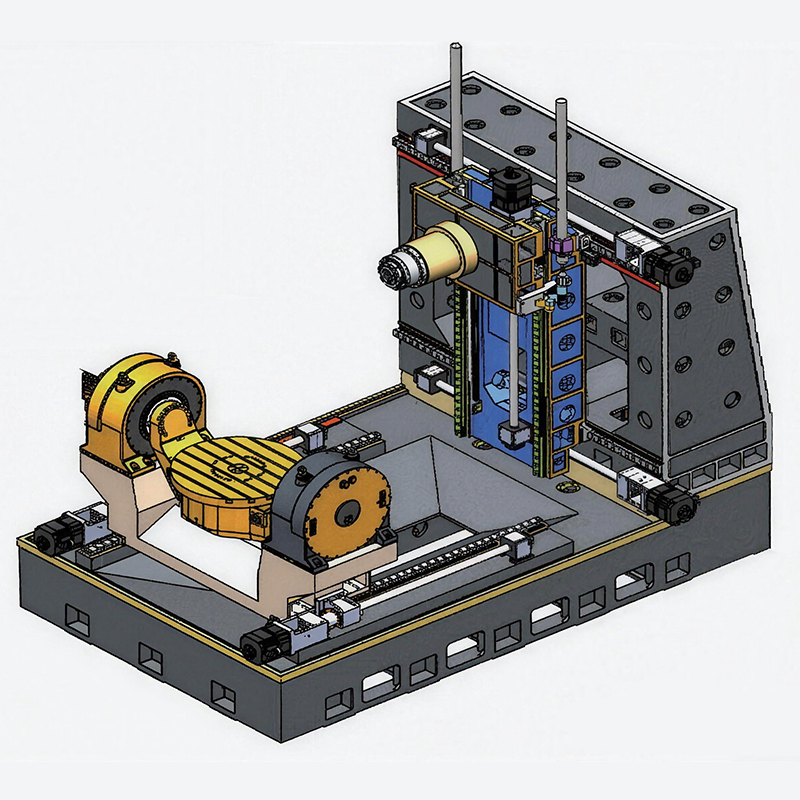

Featuring a gantry structure, the integrated bed provides high rigidity and dynamic performance. The gantry uses a dual-drive four-rail structure with internationally advanced synchronous control technology. It has extra-large travel, expanding the limits of machining capabilities. Equipped with imported high-precision ball screws and large-size imported roller linear guides. Paired with a dual-drive cradle rotary table, offering high precision and dynamic response. The dual-speed high-torque high-speed spindle is suitable for both titanium and aluminum alloy machining. Comes standard with an umbrella-style tool magazine. The tool setter is fixed on the bed to reduce measurement errors. Combined with absolute value linear scales to improve machine accuracy.

PRODUCT PARAMETERS

Crossbeam Moving Cradle 5-Axis Machining Center Series

Parameters	Unit	RTV5A400	RTV5A630	RTV5A800
Worktable	mm	Φ400	Φ630	Φ800
Max loading on table	Kg	200	1000	1200
X/Y/Z travel	mm	500x650x450	1000x1150x610	1000x1150x610
Distance from Spindle Nose to Worktable	mm	150-600	150-760	150-760
Spindle	/	Direct-drive spindle, electric spindle A2	Direct-drive spindle, electric spindle A3	Direct-drive spindle, electric spindle A3
X/Y/Z Axis Rapid Traverse Speed	m/min	48	48/36	48/36
X/Y/Z Axis Cutting Speed	m/min	48	0-15	0-15
Tool Magazine Capacity	/	20	24	24
Positioning accuracy	mm	0.006	0.006	0.006
Repeatability accuracy	mm	0.004	0.004	0.004
Weight	T	9	17	17
Typical CNC System Used	Siemens one; Ningqing

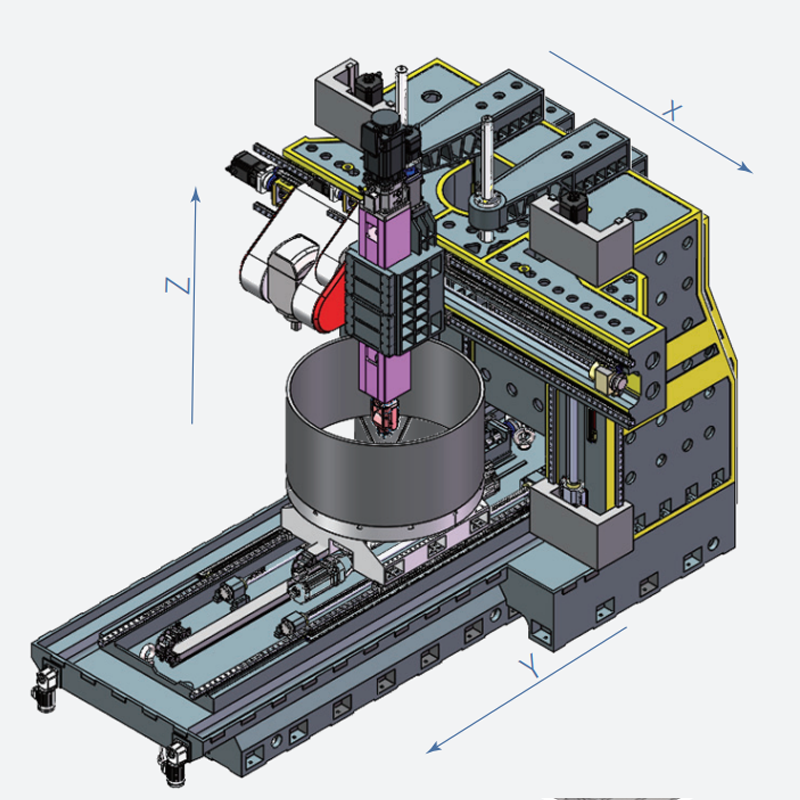

Gantry type Vertical/Horizontal 5 Axis Series RHH5A

Parameters	Unit	RHH5A1600
Worktable	mm	Φ1600
Max loading on table	Kg	4000
X/Y/Z travel	mm	2100x2210x1550
Distance from spindle end face to worktable at A-axis 0°	mm	-220~+1330
Distance from spindle center to worktable at A-axis -90°	mm	80~1630
A-axis swing angle	°	+30°~-180
C-axis swing angle	°	n*360
Spindle	/	Electric Spindle D2
X/Y/Z axis rapid traverse rate	m/min	40
X/Y/Z axis cutting speed	m/min	20
Tool magazine capacity	/	32
Positioning accuracy	mm	0.006
Repeatability accuracy	mm	0.004
Weight	T	40
Typical CNC System Used	Siemens one; Ningqing
