Heavy-duty Gantry Machining Center

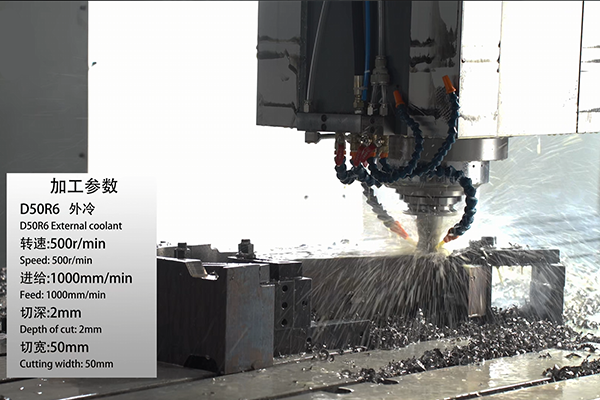

More reasonable cutting thickness; with the same speed and feed, the cutting depth can be increased by 33%.
Metal removal rate improved; in Program 2, metal removal rate increased by 80% (cutting depth and tooling increased).
Increased cutting volume, more effectively dissipating heat.
Smoother cutting condition.

Quantity:
Availability:





Inquire Add to Basket

Explore Our Equipment

PRODUCT DESCRIPTION

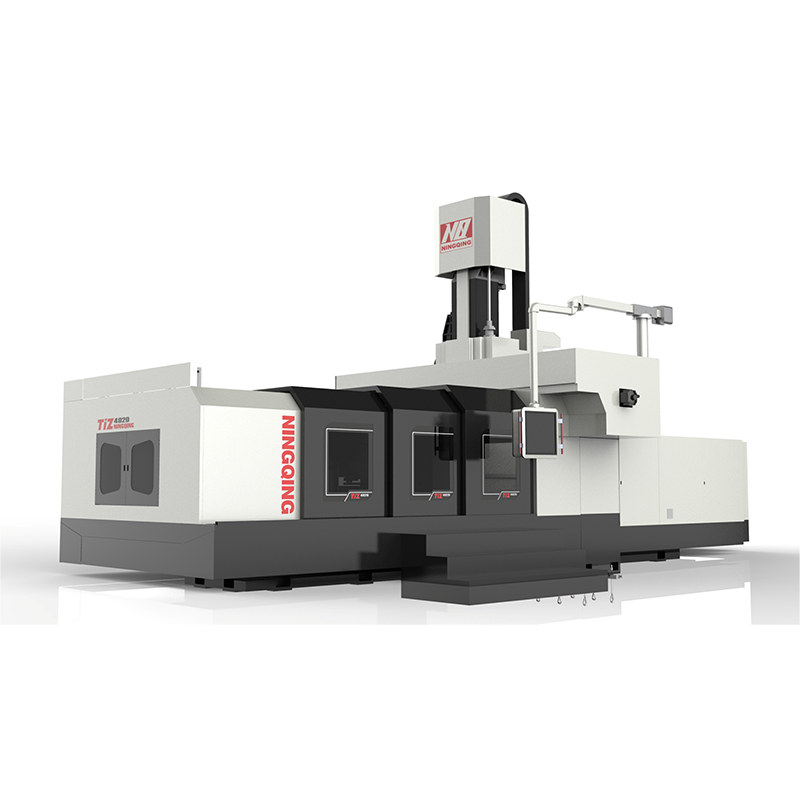

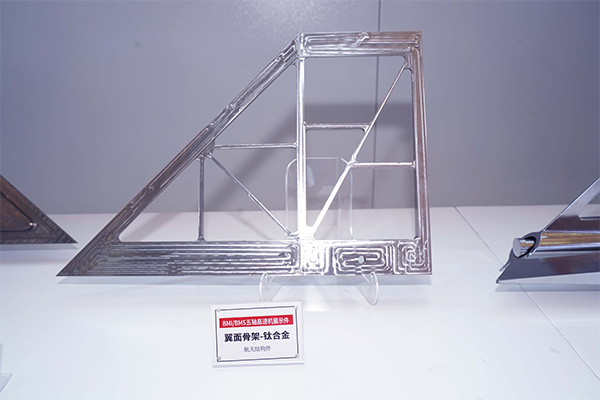

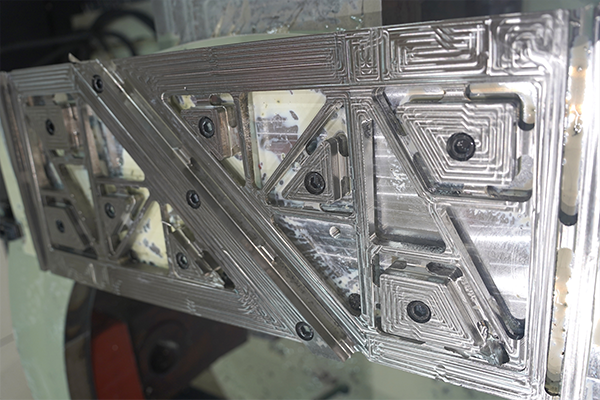

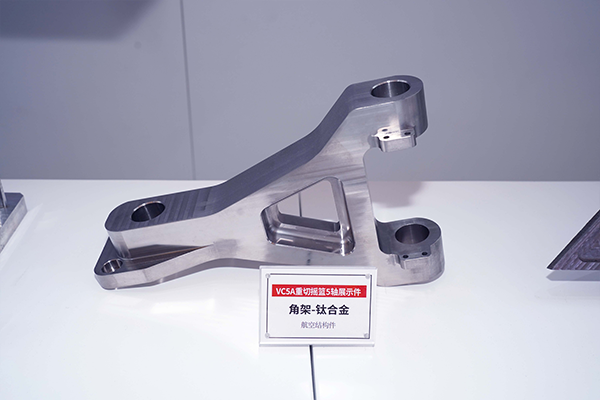

CNC Gantry Machining Center Dedicated for Titanium Alloy

Heavy Cutting Movable Column Gantry CNC Machining Center Series

1. High-strength, premium cast iron bed, significantly heavier than conventional ones, with excellent stability.

2. BT50-220 oversized spindle, front roller bearings to enhance cutting resistance; direct-drive gearbox provides ample torque.

3. X-axis 65mm extra-large roller guide, high load-bearing capacity, high precision.

4. Y-axis dual linear rail, hard rail composite design, balancing speed and rigidity.

5. Z-axis large-square sliding headstock, reinforced longitudinal rigidity.

6. Screw guide is a dedicated titanium alloy model, with load capacity more than 25% higher than Japanese and Taiwanese equivalents, strong vibration suppression, supported by major science and technology projects in Nanjing.

7. Actual measured efficiency increased by about 30%, tool life extended by about 27%.

8. Standard configuration includes high-pressure central water supply, oil mist collector, fully enclosed protection, suitable for high-efficiency titanium alloy machining.

PRODUCT PARAMETERS

CNC Gantry Machining Center Dedicated for Titanium Alloy

Parameters	Unit	Tiz2020	Tiz3020	Tiz4020	Tiz6032
Worktable	mm	2200×1700	3200×1700	4200×1700	6000×3000
Square slide block cross-section size	mm	460×460
Maximum worktable load	T	10	15	20	20
Distance between columns	mm	2200			3200
Distance from spindle end face to worktable	mm	100-900			150-950
X/Y/Z travel	mm	2000x2200x800	3000x2200x800	4000x2200x800	6000x3200x800
Spindle drive type	/	Direct connection BT50-220-3500
Spindle motor	/	22/26kw 140/210 N (1:4 dual-speed gearbox 560/840)
Spindle specifications	/	BT50-220
X/Z axis rapid traverse speed	m/min	10			8
X/Z axis cutting speed	m/min	8			5
Tool magazine capacity	/	24
Center water pressure	Mpa	7
Oil mist collection	/	Standard configuration
Positioning accuracy	mm	0.01
Repeat positioning accuracy	mm	0.005
Weight	T	30	40	45	60
Typical CNC system	/	Siemens 828; Ningqing

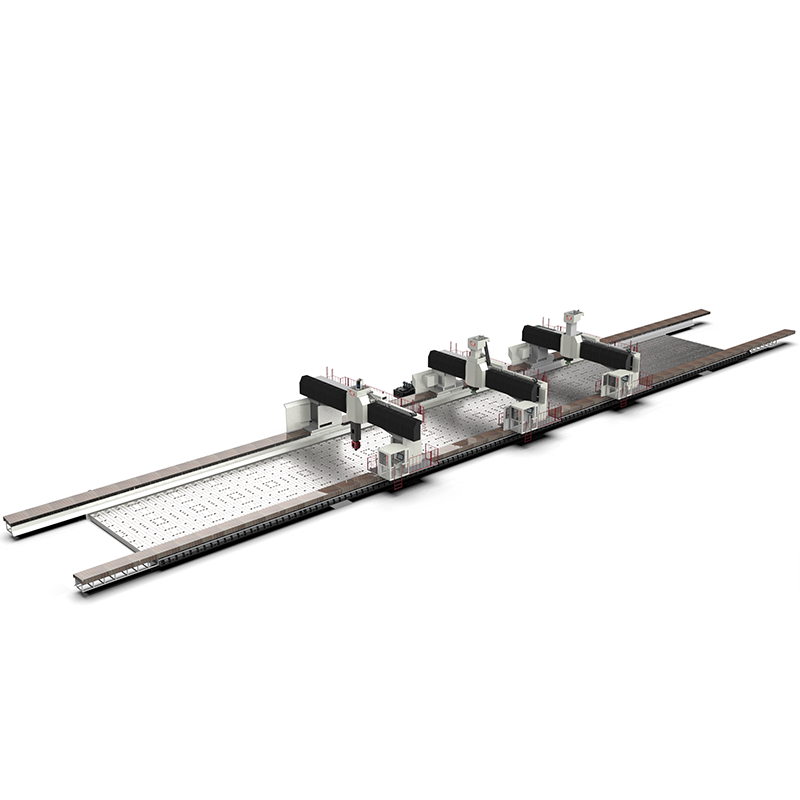

Heavy Cutting Movable Column Gantry CNC Machining Center Series

Parameters	Unit	GMS60/80-35	GMS60/80-40	GMS60/80-50	GMS80/100-60	GMSXXX50
Worktable	mm	6000×8000×2600	6000×8000×3100	6000×8000×4100	6000×8000×5100	XXX×4100
Max loading on table	t/m²	5
Y-Axis Travel	mm	3500/4000	4000/4500	5000/5500	6000/6500	5000/5500
X/Z-Axis Travel	mm	6200/8200×1200			8200/10200×1200	/
Guide Rail Type	/	The X-axis is precisely driven synchronously on both sides, with each side supported by two linear guides plus a rectangular rail. The Y-axis uses dual linear guides complemented by hard guides distributed vertically for strong support. The Z-axis square slide block uses hard rails.
Distance from Spindle End to Worktable Surface	mm	Standard 350-1550, optional 350-1850
Spindle Drive Method	rpm	Standard configuration includes built-in short direct-connect BT50-6000 dual-speed gearbox (BT50-3000 roller bearings / BT60-2000 roller bearings) / Optional top-mounted long direct-connect with center water outlet
Spindle Motor	/	30/35L Series: Standard configuration 37/55.5Kw (rated 1500rpm) 236/354Nm (two-speed gearbox 944/1416Nm);
Tool Magazine Capacity	/	24-position disc / storage-type tool magazine
Distance Between Columns	mm	3500	4000	5000	6000	5000
Rapid/Feed Speed	m/min	15/0-10
Positioning Accuracy/Repeatability	mm	0.01/0.005
Machine Weight	t	58/70	62/72	69/79	84/95	/
Overall Dimensions (Excluding Electrical Cabinet)	mm	11650/13650×7750×5200	11650/13650×8350×5200	11650/13650×8350×5200	13650/15650×9350×5200	/
Typical CNC System	/	Standard with Siemens 828D, Fanuc 0i MF plus, optional Siemens ONE
