With the rapid development of the aviation industry, the performance and reliability of aircraft engines have become important indicators to measure their technical level. Aircraft engine parts have high precision, high complexity and high reliability requirements, and traditional processing methods are difficult to meet these requirements. The emergence of CNC (computer numerical control) machine tools has become the core technology for aircraft engine parts processing with its high precision, high efficiency and flexibility. This article will explore the application and importance of CNC machine tools in aircraft engine parts processing.
1. The basic principle of CNC machine tools
CNC machine tools are automated equipment that controls the movement and processing of machine tools through computer programs. It combines computer technology, automatic control technology and precision machinery technology, and can achieve multi-axis linkage, complex surface processing and high-precision cutting. The user only needs to enter the processing program, and the machine tool can complete the milling, turning, drilling and other operations of the parts according to the instructions. Compared with traditional machine tools, CNC machine tools have higher processing accuracy and repeatability, and are particularly suitable for processing aviation parts with complex shapes and high precision requirements.
2. Processing characteristics of aircraft engine parts
Aircraft engines are the "heart" of the aviation industry. Their parts, such as turbine blades, compressor discs, combustion chamber casings, etc., have the following characteristics:
Complex geometry: Turbine blades usually have complex curved structures and are difficult to process.
High precision requirements: The dimensional tolerance and surface roughness requirements of parts are extremely high, and the errors are often at the micron level.
Special materials: Aviation parts often use difficult-to-process materials such as high-temperature alloys and titanium alloys, which have extremely high requirements for tools and processing technology.
Small batches and multiple varieties: The research and development and production of aircraft engines are often small-batch production, and processing equipment needs to be flexible.
These characteristics determine that traditional processing methods are inefficient and difficult to guarantee precision, while CNC machine tools can cope with these challenges well.

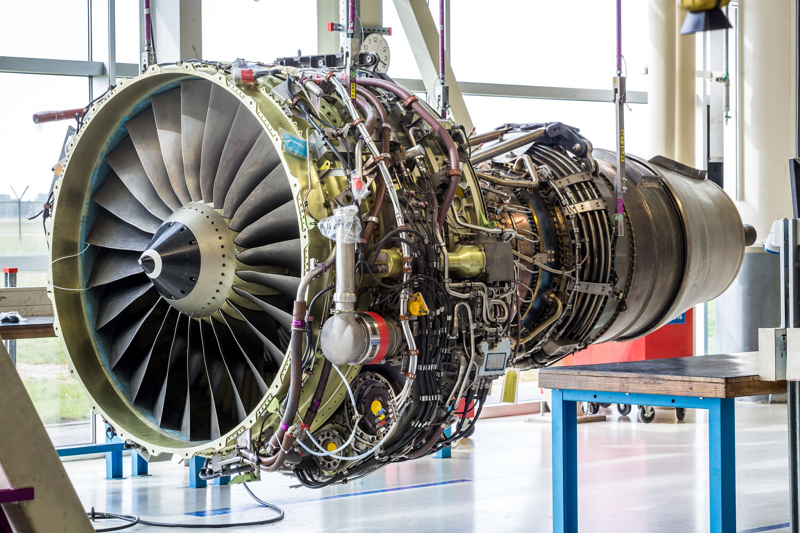

![Aircraft engine parts processing]( "Aircraft engine parts processing")
3. Application of CNC machine tools in processing
Processing of turbine blades
Turbine blades are the core components of aircraft engines. Their curved surfaces are complex and require high-precision processing. CNC five-axis linkage machine tools can achieve multi-angle and multi-directional cutting, and accurately process the curved surfaces and airways of blades. By optimizing the machining program and tool path, not only the machining efficiency is improved, but also the aerodynamic performance and mechanical strength of the blades are guaranteed.
Machining of compressor discs
Compressor discs are usually made of titanium alloys or high-temperature alloys, which are difficult to process. CNC turning and milling composite machine tools can complete multiple processes such as turning, milling and drilling in one clamping, reducing clamping errors and improving machining accuracy. At the same time, the high-speed cutting function of the machine tool can effectively cope with the characteristics of difficult-to-process materials.
Machining of combustion chamber shells
The combustion chamber shells usually have thin-walled structures and are prone to deformation. CNC machine tools reduce machining stress and avoid part deformation by precisely controlling cutting forces and machining parameters. In addition, the online detection system equipped with the machine tool can monitor the size of parts in real time during the machining process, adjust machining parameters in time, and ensure quality.
4. Advantages of CNC machine tools
High precision and high stability: CNC machine tools can achieve micron-level machining accuracy through closed-loop control systems and precision sensors, meeting the high requirements of aviation parts.
Efficient production: Automated machining reduces manual intervention, shortens production cycles, and improves production efficiency.
Strong flexibility: By changing the processing program, CNC machine tools can quickly adapt to the processing needs of different parts, suitable for small batch and multi-variety production.
Controllable quality: The detection and monitoring system equipped with the machine tool can provide real-time feedback on the processing status to ensure the quality consistency of each part.
5. Future development trend
With the advancement of intelligent manufacturing and Industry 4.0, the application of CNC machine tools in the processing of aircraft engine parts will be further upgraded. For example, combined with artificial intelligence and big data analysis, the machine tool can achieve adaptive processing and automatically optimize cutting parameters; through digital twin technology, the processing process can be simulated in a virtual environment to detect potential problems in advance. In addition, the research and development of new tool materials and processing technologies will further enhance the processing capabilities of CNC machine tools.
Conclusion
The application of CNC machine tools in the processing of aircraft engine parts not only improves processing accuracy and efficiency, but also promotes technological progress in the aviation industry. Faced with higher performance requirements of the aviation industry in the future, CNC machine tools will continue to play a key role and become an indispensable technical support in the field of aviation manufacturing. Through continuous innovation and optimization, CNC machine tools will surely inject new impetus into the development of the aviation industry.
